BZ-A Type 270 Degree Supporting Cantilever Crane

Product Description:

BZ type fixed column cantilever crane is a small and medium-sized lifting equipment developed in recent years. Its structure is unique, safe and reliable, with the characteristics of high efficiency, energy saving, time saving, labor saving and flexibility. It can operate freely in three-dimensional space, especially in short distance and intensive lifting occasions, which shows its unique advantages over conventional lifting equipment.



BZ-A Type Fixed Column Down-supporting Cantilever Crane Optional Matching
Hand chain hoist
Ring chain electric hoist
Wire rope electric hoist
The maximum rotation angle of BZ type fixed column cantilever can reach 270 degrees.

The rotating mode of BZ type fixed column cantilever crane can be manually or electrically operated.

BZ type fixed column cantilever rotary reducer can be placed above or below.

Suitable for situations with limited height. It can be equipped with low clearance ring chain hoist to save more space.



Environmental conditions:

BZ-A type fixed-column rotary jib crane can operate freely in three-dimensional space, especially in short-distance and intensive lifting occasions, it shows its unique advantages over conventional lifting equipment.

It is widely used in workshops, warehouses, wharfs and other fixed places.



Technical parameters:



BZ-A type fixed-column cantilever-manual rotation

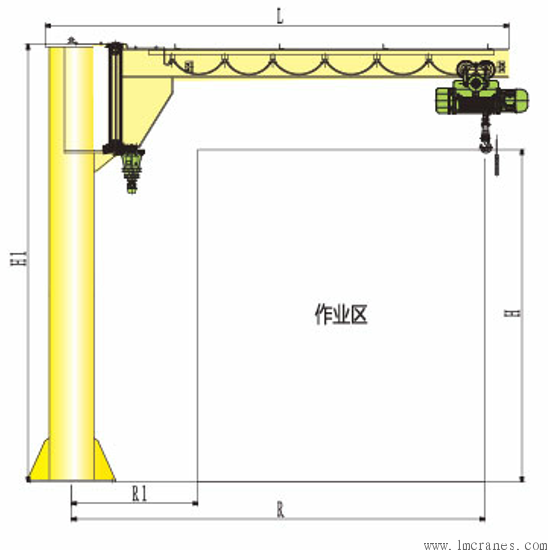

BZ-A Type Column-fixed Cantilever-Electric Rotation


Model
Rated lifting weight t
Rise height (m) H  & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
Turning radius (m) R
Rotation angle (& deg;)
Slewing mode
Rotation speed (r/min)
Hoisting speed (m/min)
BZ-A
Zero point one two five
Zero point two five
Zero point five
One
Two
2~8
2~8
Two hundred and seventy
Manual
Manual
According to electric hoist
BZ-A-D
Zero point five
One
Two
Three
Five
2~8
2~8
Two hundred and seventy
Electric
Zero point seven
Determine
according to electric hoist

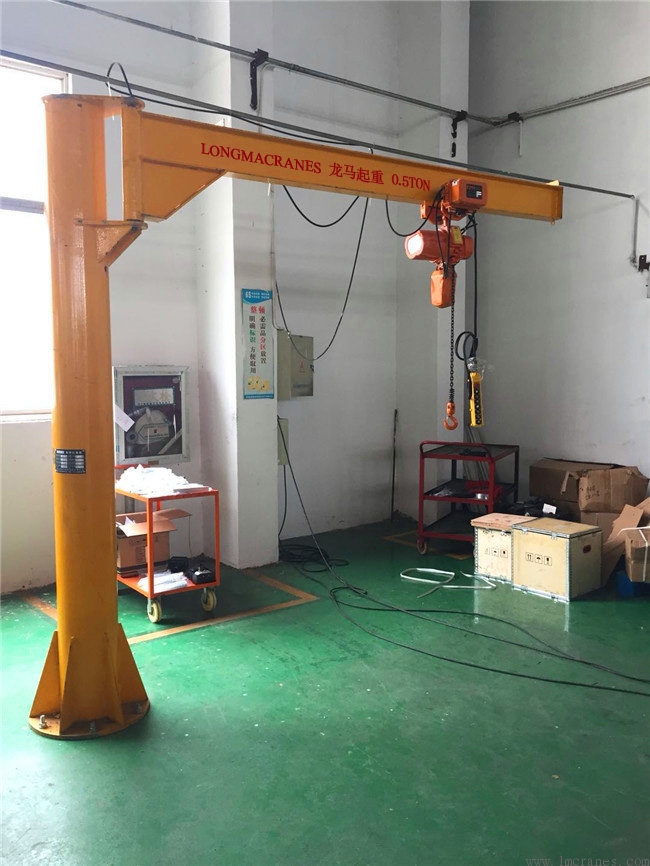

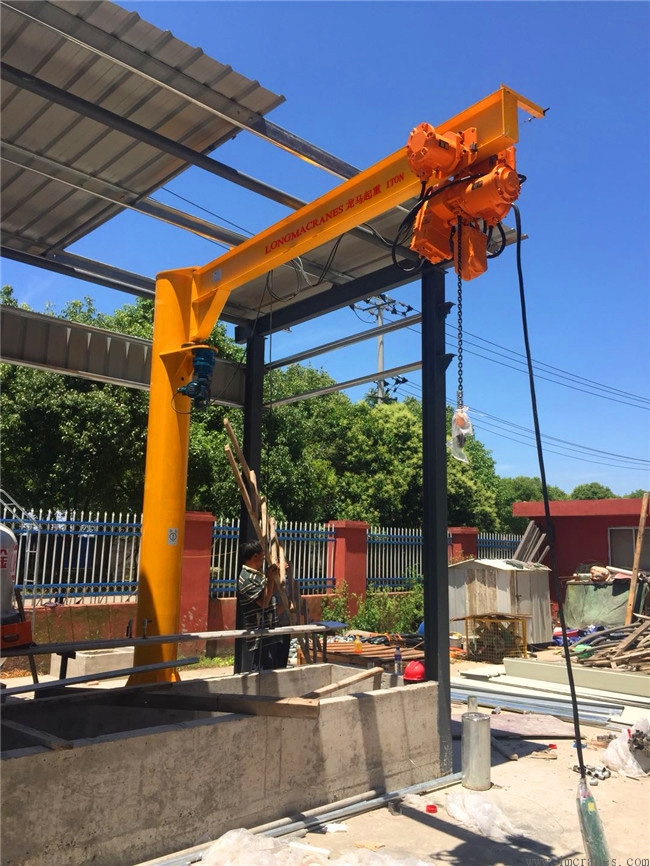

Case Study of BZ Type Column-fixed Cantilever
