Cantilever Crane of BX Wall Crane

Product Description:

BX wall type (wall pillar type) swivel boom crane is to install the crane swivel boom on the user's wall or house pillar. Rotary arm and hand hoist are used together to realize the movement of lifting weight in 180-deg range.

BX wall cantilever can be equipped with the following lifting equipment.
Hand chain hoist
Ring chain electric hoist
Wire rope electric hoist
pneumatic hoist
Intelligent Balancer Equipment
BX wall cantilever can also be divided into two types: cable-stayed and bottom-supported.

The lower support type is suitable for a house of limited height.

Rotation can be electrically or manually switched.



Environmental conditions:

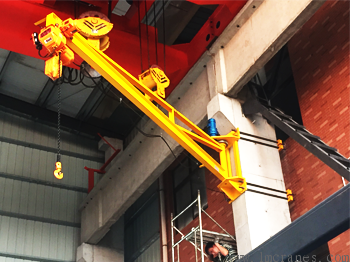

BX type wall type (wall pillar type) boom crane is to install the crane boom on the user's wall or house pillar, which can make full use of the space structure of the workshop, save the production site and operate flexibly. Use with workshop or warehouse.



Technical parameters:

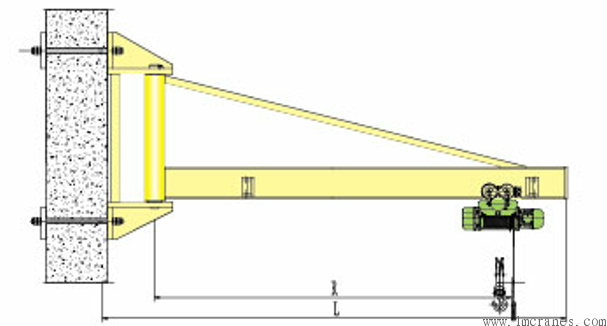

Cable-Stayed Manual Rotary Wall Hanger

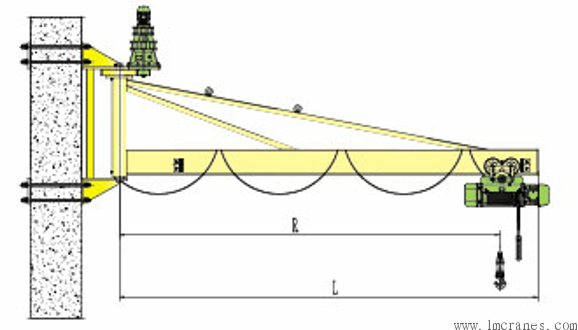

Cable-Stayed Electric Rotary Wall Crane


Model
Rated lifting weight t
Rise height (m) H  & nbsp; & nbsp; & nbsp; & nbsp; & nbsp; & nbsp;
Turning radius (m) R
Rotation angle (& deg;)
Slewing mode
Rotation speed (r/min)
Hoisting speed (m/min)
BX
Zero point one two five
Zero point two five
Zero point five
One
Two
According to the scene
2~8
Two hundred and seventy
Manual
Manual
According to electric hoist
BX-1
Zero point five
One
Two
Three
Five
According to the scene
2~8
Two hundred and seventy
Electric
Zero point seven
According to electric hoist
