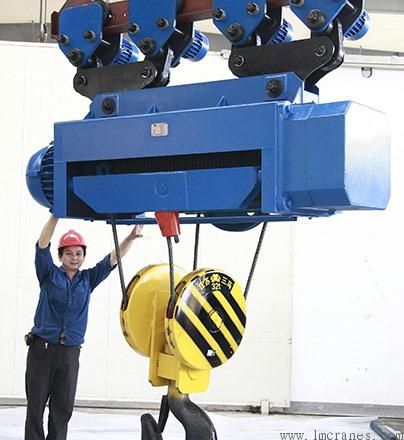

Large tonnage electric hoist

product introduction
HC/HM electric hoist is a kind of wire rope electric hoist with large lifting weight and high working level. The product can reach various lifting specifications and different working levels by changing the ratio of pulley group. It meets the requirements of customers to the greatest extent. It is a necessary machine for improving working conditions and improving labor productivity
.

Product advantage
HC, HM series electric hoist is a new type of large tonnage electric hoist, which is composed of 08 and 16 types. By changing the ratio of pulley block and motor, it can be combined into lifting equipment < br/> which can meet the needs of various occasions.


1. The reducer adopts square structure, which is convenient for installation and transportation < br />.


2. Through the combination and transformation of the basic type, the application scope of electric hoist is greatly broadened < br />.


3. The working level ranges from M3 to M6 < br />.


4. It has upper limit double limit function < br />.


5. Lifting Limit Protection Function



6. It has the protection functions of overload, over current, voltage loss and phase break < br />.


technical parameter
type
08
Sixteen
Type of gourd
HC/HM082
HC/HM083
HC/HM084
HC/HM162
HC/HM164
Lifting weight (ton)
Eight
Ten
Twelve point five
Sixteen
Twenty
Sixteen
Twenty
Twenty-five
Thirty-two
Forty
Maximum elevation (m)
32 m
32M
20 m
16 m
16 m
48 m
48 m
24 m
24 m
24 m
Work level
M4
M3
M4
M4
M3
M4
M3
M5
M4
M3
Wire rope rate
2/1
2/1
3/1
4/1
2/1
4/1
Hoisting Speed of HC Cucurbit (m/min)
Seven
Seven
Four point seven
Three point five
Five
Two point five
Hoisting speed of HM hoist (m/min)
7/0.7
7/0.7
4.7/0.47
3.5/0.35
5.0/0.96
2.5/0.48
HC hoist motor (kW)
Thirteen
Thirteen
Thirteen
Eighteen point five
Eighteen point five
HM hoist hoist motor (kW)
13.0/1.5
13.0/1.5
13.0/1.5
18.5/3.0
18.5/3.0
Running motor (kW)
2× 0.5
2× 0.5
2× 0.8
2× 0.8
2× 0.8
4× 0.8
Fixed type gourd (A)
√
√
√
√
√
√
Monorail trolley hoist (B)
√
√
√
√
√
√
Application scope
Mainly used in places with large lifting weight and high working level, such as double-beam hoist, gantry crane hoist, etc.
