[Introduction to PJY Mobile Balanced Crane]
1. Key words: balance crane, balance machine, balance machine, manipulator, assistant manipulator, PDJ-Y balance crane, mobile balance crane
2. Introduction of PJY Mobile Balanced Crane:
PJY mobile balance crane is also a new type of material lifting equipment.
PJY mobile balancing crane is a kind of light and small crane which is installed on the mobile base.
PJY mobile balance crane can lift heavy objects in workshop, warehouse and other non-fixed places.
Comparatively speaking, PDJ-Y mobile balancing crane is more flexible and convenient, not limited by the space location.
The rated lifting weight of balancing crane is generally 50 kg, 100 kg, 200 kg, 300 kg, 500 kg and 1000 kg, and the working radius is generally 2 500 mm.
3. The structure of PJY balancing crane is composed of A, pillar, B, balancing arm, C, balancing tower, D, movable chassis.
4. Characteristic of balanced crane:
(1) simple structure and ingenious conception; < br />
(2) Small size, occupying small space of workshop;
(3) light weight, flexibility and convenience; < br />
(4) accurate positioning and dexterous operation; < br />
(5) Easy installation and maintenance;
(6) strong universality; < br />
(7) Suitable for short distance, high frequency and intensive lifting operation
5. Environmental conditions of balanced crane:
(1) The crane's power supply is three-phase AC, rated frequency is 50HZ, rated voltage is 380V.
(2) The altitude of the crane installation site shall not exceed 2000M.
(3) No flammable, explosive and corrosive gases shall be allowed in the working environment of the crane. (Except pneumatic explosion-proof balanced crane, it can adapt to harsh environment)
(4) Cranes are not allowed to hoist molten metals, toxic substances and inflammable and explosive materials.
[Technical parameters of PDJ-Y mobile balancing crane]

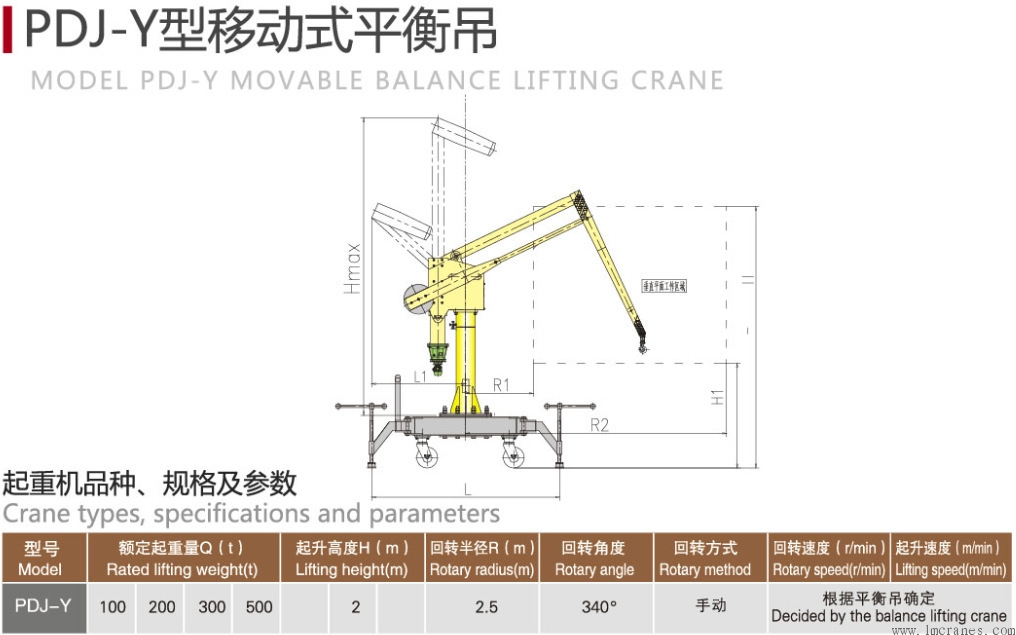

Design sketch and specific technical parameter table:

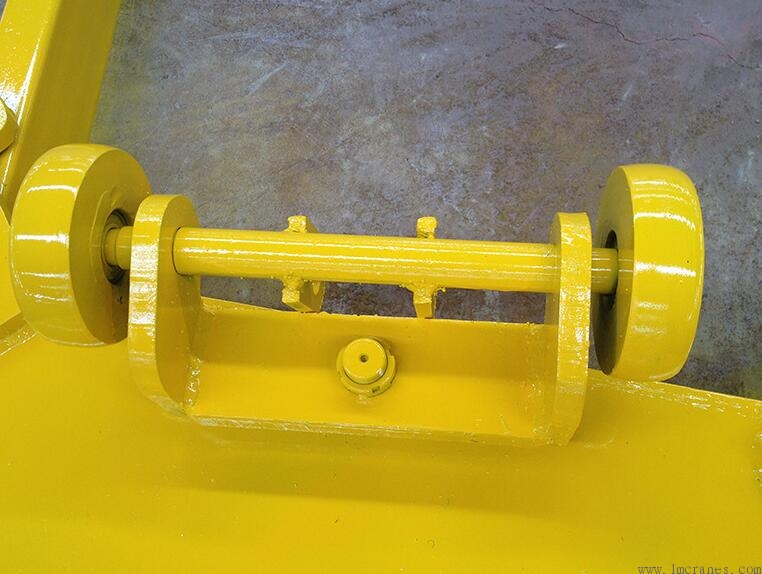

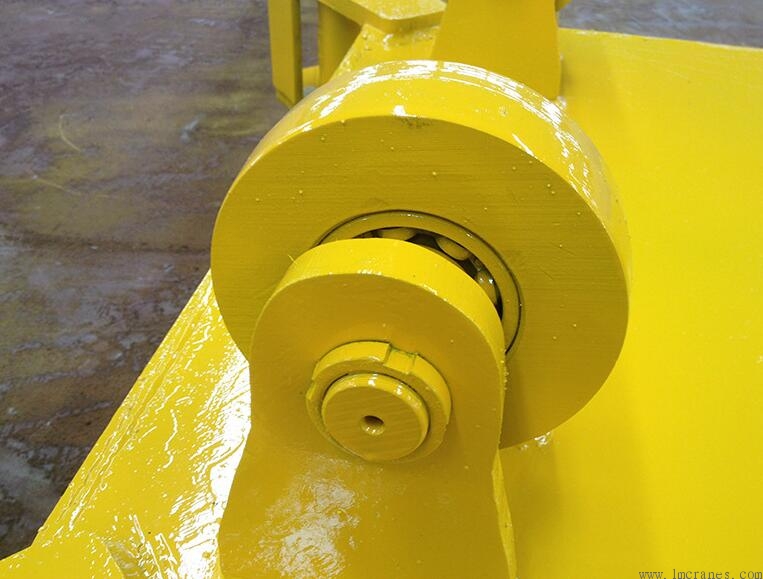

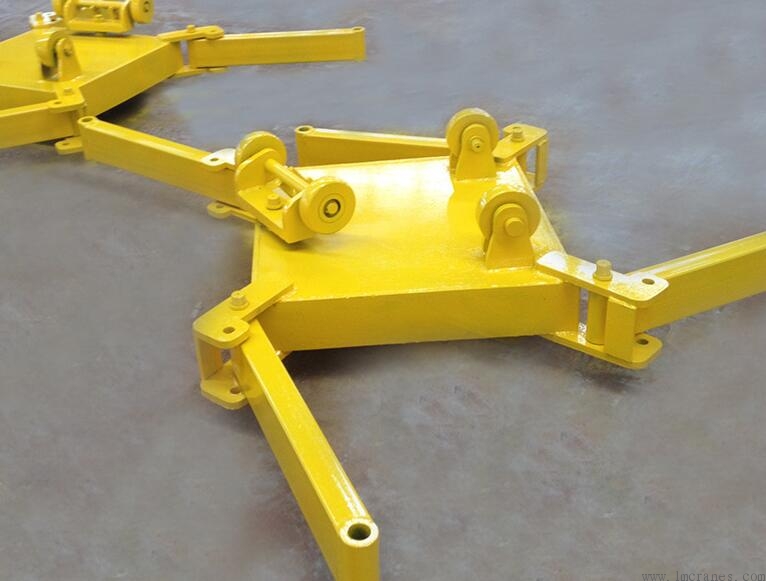

Illustration of base structure
